Before You Start

Back


AP Mode Button

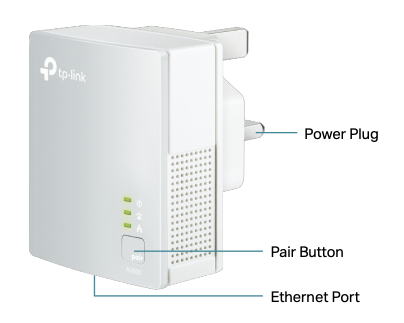

A powerline adapter is a pair of devices used to connect your Enphase envoy to the router. There should be one adapter connected to the router and another plugged into the envoy.

AP Mode Button

Powerline adapters work in pairs. You should have at least two powerline products to build a powerline network.

Plug the powerline adapter directly into a wall outlet. Do not plug the powerline adapter into a power strip, extension cord, or surge protector.




Step 1: Pair the Powerline Adapters




AP Mode Button

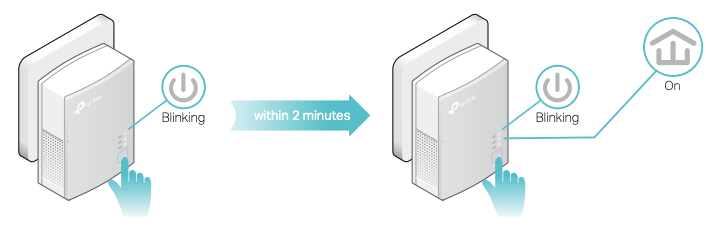

  • Place powerline adapters in two outlets close to each other. Make sure all powerline device Power LEDs are on and not blinking.
  • Press the Pair button on one of the powerline devices for 1 second. Its Power LED starts blinking.
  • Within two minutes, press the Pair button on another powerline adapter for 1 second. Its Power LED starts blinking. When the Powerline LED turns on, the pairing process is complete.

AP Mode Button



Step 2: Connect to Router




AP Mode Button

Once the powerline adapters have been paired, place one in a power outlet close to the router and the other next to your Enphase envoy.

With the provided ethernet cables, connect one device to the router and the other to your Enphase envoy. After 5-10 seconds, all LED's should be green on both devices.

Your Enphase system should be back online within 10 minutes.
